Sequens est introductio altae qualitatis N9960A FieldFox Handheld Proin Imaginis Analyzer, sperans te melius intelligere. Exspectate clientes novos et veteres pergere ad cooperandum nobis ad melius futurum creandum!
Numquam sacrifica facultatem vel Portability

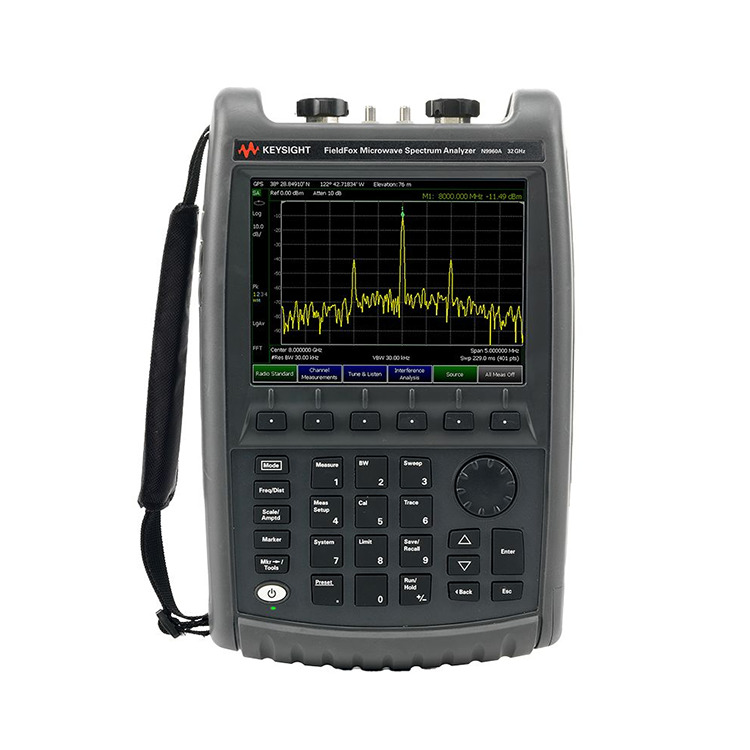

N9960A FieldFox Handheld Proin Spectrum Analyser instructi sunt ad tractandum tuum durissimum operandi ambitus in exercitatione sustentatione, in profundis sollicitudinibus, et quidvis intercedit. Elige Keysight FieldFox conformationem quae maxime necessitatibus tuis occurrit.
Accurate spectrum analysentium mensuras (± 0.5 dB) sine fermentum fac.
Capere signa interpolata cum 10 MHz intercapedo libera, band temporis realis.
Sunt notae terunt pulsus perfiles cum solutione portatili.
Praestare supra mensuras aeris pro 5G TF et LTE.
Excipio I/Q data pro RF signo vigilantia et analysi.
Usus GPS/GNSS pro geolocation et indicatione temporis.
One leve pondus unitas in 3.2 kg (7.1 lb).
Quid comprehendit:
AC/DC adaptor
Potentia funis localis
Rechargeable eu Li-ion
Mollis in sacco dorsuali et umeris lora gerendi causa
Quick Reference Guide
| Additional SA Substructio Features: | Real-time Imaginis Analysis |
| Sonitus Figurae Mensurae | Plus-the-Aeris mensurae |
| Inaedificata in Power Meter | Extensi Range Transmissio Analysis (ERTA) |
| Applicationes: | AM/FM Tune and Audi |
| Ager virtus mensurae | SCPI Code Compatibility |
| Spectrogram | Stimulus Response |
| 89600 VSA Software | Plus-the-Aeris LTE FDD et 5GTF |
| Sed Options: | 10 MHz |
| Cable and Antenna Analyzer: | No |
| DANL @1 GHz: | -159 dBm |
| Frequentia: | 32 GHz |
| Instrumentum Type: | Imaginum Analyser |
| Maximum Analysis Bandwidth: | 10 MHz |
| Maximam Frequentiam: | 32 GHz |
| Maximum Verus-Tempus Bandwidth: | 10 MHz |
| Numerus inaedificata in portubus: | 2 port |
| Power output: | Ad IV dBm |
| Amplitudo cura altiore: | ±0.3 dB |
| Status Vox @1 GHz (1 MHz offset); | -113 dBc/Hz |
| Phase Noise @1 GHz (10 kHz offset); | -111 dBc/Hz |
| Phase Noise @1 GHz (30 kHz offset): | -108 dBc/Hz |
| Virtus Mensurae Using USB Sensor: | Frequentia-Offset |
| CW vel Swept-Frequency | Pulsus RF Expertus Pecco Sensor |
| SA Satus Frequency: | 5 kHz |
| Spectrum Analyser: | Ita - Standard |
| Calcar Free Dynamic dolor: | > 104 dB |
| Standard Attenuator Range: | 30 dB* |
| Standard Attenuator Gradus: | 5 dB* |
| Ratio Features: | GPS Receptor - Internus Tantum |
| Remota Imperium Capability | Instructa in DC Source |
| Typus: | Handheld |
| TOI @1 GHz (3rd Order Intercept); | +13 dBm |
| Vector Network Analyzer: | No |
